A homeowner in Sarasota, FL contacted Thomas Edison Electric after a home inspection identified their Federal Pacific Electric (FPE) panel as needing replacement. Our team performed a comprehensive electrical modernization that included panel replacement, whole-home surge protection, and updated smoke detection throughout the residence.
The Problem
“The home inspector came out and said the Federal Pacific breaker panel needed to be fixed.”
Federal Pacific Electric panels were widely installed in homes built between the 1950s and 1980s. However, research has shown that FPE breakers may not trip reliably under fault conditions. As a result, many insurance companies and inspectors now recommend replacement during property transactions.
Investigation

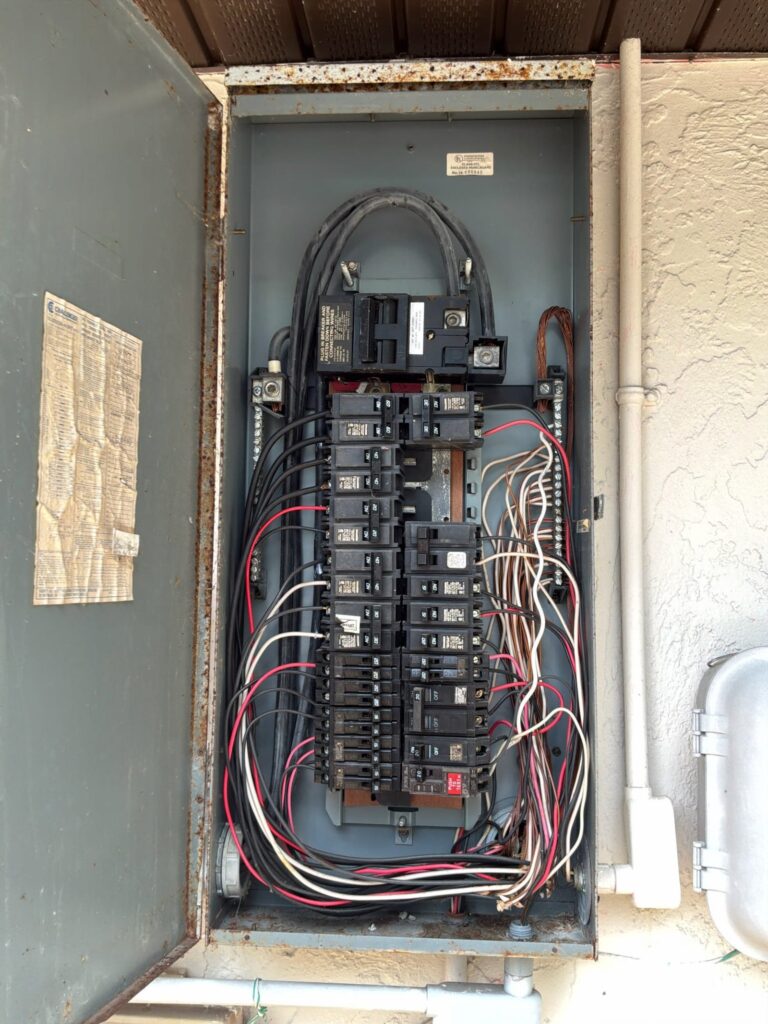

Our field team found the existing FPE panel serving the home’s electrical needs but predating current safety standards. Additionally, the inspection revealed opportunities to enhance the home’s electrical safety with modern surge protection and interconnected smoke detection systems. These features weren’t required when the home was originally wired.
In fact, the existing electrical system was functional but lacked the protective features now considered standard for residential installations.
What We Fixed

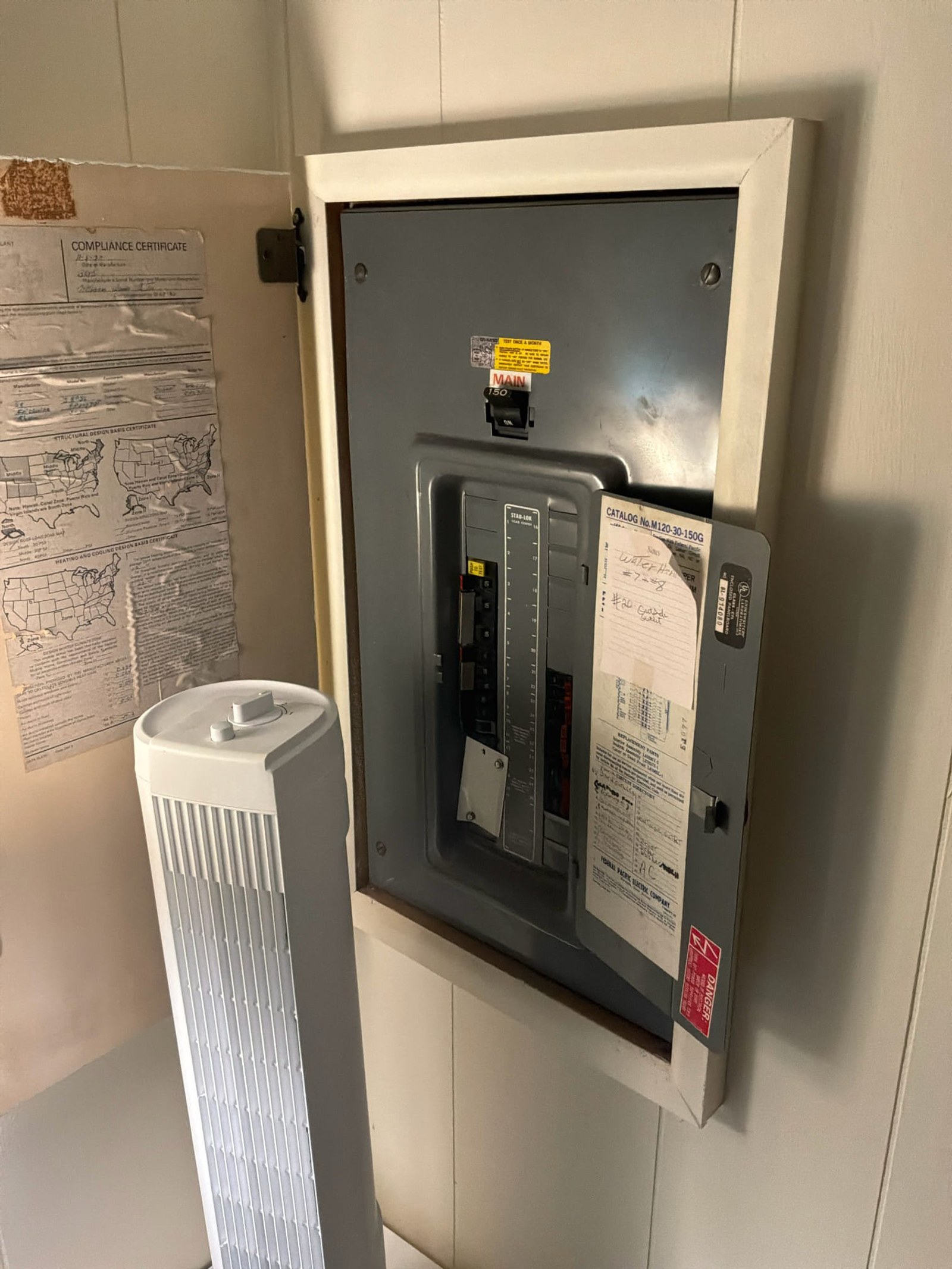

Modern Panel Replacement with Square D
Our team replaced the FPE panel with a modern Square D HomeLine system. We installed new HOM115 single-pole 15-amp breakers and HOM240 two-pole 40-amp breakers as needed for the home’s circuits. We also installed a GE THQP230 30-amp two-pole breaker to serve a specific high-amperage load. This electrical panel upgrade in Sarasota, FL brought the home up to current safety standards.
Whole-House Surge Protection Installation
For surge protection, we installed a PSP Vortex 120 kA whole-house surge protector directly onto the new panel. This device provides Type 2 surge protection at the service entrance. It safeguards the entire home’s electrical system from voltage spikes caused by lightning or utility grid fluctuations. To learn more about protecting your electronics, visit our whole-house surge protection in Sarasota, FL page.
Interconnected Smoke and CO Detection Upgrade
The modernization included upgrading the home’s smoke detection system with five interconnected smart smoke and carbon monoxide detectors. These units feature 10-year sealed lithium batteries and communicate wirelessly. When one detector activates, all units throughout the home sound simultaneously. For more information, see our smoke and CO detector installation in Sarasota, FL services.
Additional Safety and Convenience Improvements
Additionally, we performed several smaller improvements. These included installing a tamper-resistant 15-amp receptacle with a new old-work box, replacing a decorator switch, and adding a cord cap to an existing appliance cord.
Why This Matters for Homeowners
Federal Pacific panels were a product of their time. However, modern electrical systems offer significantly enhanced safety features. Today’s circuit breakers are rigorously tested to ensure they trip reliably when overcurrent conditions occur. This provides the protection your home’s wiring and devices need.
Moreover, whole-house surge protection has become increasingly important as homes contain more sensitive electronics. Furthermore, interconnected smoke detection creates a comprehensive early warning system. When smoke is detected in one area, occupants throughout the entire home are immediately alerted, regardless of where they are when an emergency begins.
Common Questions
Questions homeowners ask after seeing this kind of work.
Why are Federal Pacific Electric panels dangerous?
FPE Stab-Lok breakers have a documented failure-to-trip rate of approximately 25-65% during overcurrent events according to independent testing. When a breaker does not trip, the wiring continues to heat under fault conditions and can ignite. Multiple house fires have been traced to FPE panels.
How do I know if I have an FPE panel?
Look at your panel cover for a label that says Federal Pacific or Federal Pacific Electric. The breakers themselves are marked Stab-Lok on the toggle. A safety inspection can confirm what is installed.
How much does an FPE panel replacement cost?
Replacement runs $2,500-4,500 depending on panel size, location, and whether the service entrance cable also needs replacing. Most insurance companies will cover part of the cost if they are requiring the replacement.
How long does an FPE replacement take?
A standard panel swap takes one full day with power off for about 4-6 hours. We coordinate with the utility for service disconnect and reconnect, pull permits, and schedule the county inspection.
What modern panel should replace an FPE?
We recommend Square D HomeLine or QO panels, or Eaton CH series. All three are widely available, have excellent breaker reliability, and accept modern features like plug-on neutral surge protection. Our panel upgrade service typically uses Square D HomeLine for residential.
